Product Description
The

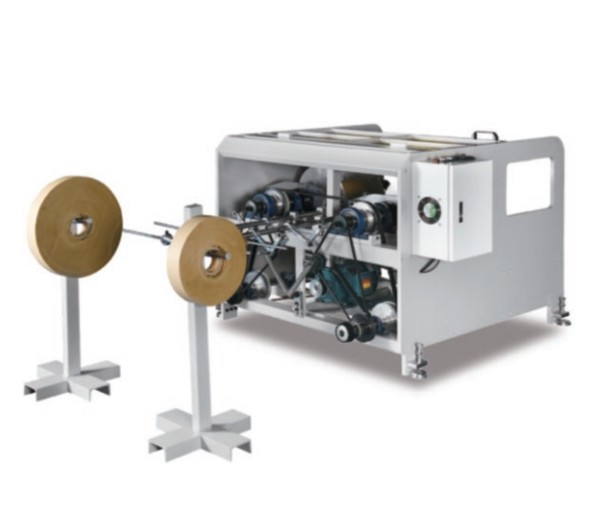

0NL-TW2 by Oyang is a
dual-station paper rope twisting machine designed for high-speed production of twisted paper ropes used in paper handle making and bag manufacturing. It uses rolls of kraft paper as raw material and twists them into ropes on two parallel stations for increased throughput.
Key Features & Capabilities
Dual Production Stations
Adjustable Rope Output
Application
| Feature | Specification |
| Model | 0NL-TW2 Double Station Twisted Paper Rope Machine |
| Brand | Oyang |
| Core Diameter of Raw Rope Roll | 76 mm (3) |
| Max. Paper Rope Diameter (web) | Up to 800 mm |
| Paper Roll Width | 20 100 mm |
| Paper Thickness (GSM) | 20 60 g/m |
| Finished Paper Rope Diameter | 2.5 6 mm |
| Max. Finished Rope Roll Diameter | 300 mm |
| Max. Paper Rope Width | 300 mm |
| Production Speed | 30 40 m/min |
| Power Supply | 220 V |
| Total Motor Power | ~1.5 kW |
| Total Weight | ~300 kg |
| Overall Dimensions (LWH) | ~1580 1440 930 mm |
Efficient Production for Paper Bag HandlesThis machine is optimized for the quick and uniform production of twisted paper ropes, which are essential for paper bag handles. The dual-station feature doubles productivity without compromising rope quality. Its adjustable settings support various rope diameters and twist pitches, and the user-friendly PLC control ensures smooth operation with minimal supervision.
Versatile Application with Quality ControlDesigned to process kraft and virgin paper, the machine accommodates paper rolls up to 1000 mm in diameter and widths from 20 to 100 mm. Advanced technologies such as photoelectric correction and automatic film length counting guarantee consistent, high-quality rope suitable for diverse paper bag handle requirements.
FAQ's of Double Station Twisted Paper Rope Machine:
Q: How does the Double Station Twisted Paper Rope Machine operate?
A: The machine uses electric drive and PLC-based controls with a touchscreen interface, making operation straightforward. Paper is fed into the machine, twisted to the selected pitch and diameter, and automatically wound onto reels at both stations for maximized production.
Q: What types of paper can be used with this machine?
A: The machine is compatible with kraft paper and virgin paper. It supports a wide range of paper widths (20-100 mm) and can handle rolls with a maximum diameter of up to 1000 mm, ensuring versatility for various handle rope specifications.
Q: When is installation and training support available?
A: Installation and training services are available upon request and are usually scheduled after the purchase. Manufacturers or authorized suppliers coordinate to ensure smooth installation and operational guidance for your staff.
Q: Where can this machine be used most effectively?
A: The machine is typically used in manufacturing facilities that produce paper bag handles, particularly where consistent, high-volume output is required. It's ideal for businesses looking to streamline their paper bag production or upgrade existing rope turning operations.
Q: What are the benefits of using a double station configuration?
A: A double station design allows for simultaneous production on two outlets, effectively doubling output rates compared to single-station machines. This increases efficiency, reduces downtime, and enhances overall productivity for businesses.
Q: How is uniform twisting and rope quality ensured?
A: The machine is equipped with features like photoelectric correction, automatic film length counter, and PLC-controlled adjustments. These technologies ensure uniform twisting, precise dimensions, and high-quality output on a consistent basis.
